Features
International brand engine
It is equipped with Yanmar 4TNV98C naturally aspirated engine, with an approved power of 44.4kW/2100rpm. Fuel-saving, low noise, sufficient power, low emission, and compliance with emission regulations.
Maximum excavation force at the same level
The maximum traction force of YC80 is 68kN, the digging force of bucket is 56KN, and the digging force of stick is 38KN, which ensures the effective exertion of strong digging force and makes the digging and hoisting more stable.
Higher energy efficiency ratio
Better fuel efficiency: In the common speed range, the average efficiency of YC80 is about 19% higher than that of the industry benchmark model
Lower fuel consumption
Optimize the blade shape to enhance the efficiency of bulldozing work. The unique design prevents soil from leaking from the upper part of the blade to the rear, significantly improving the efficiency of filling and leveling.

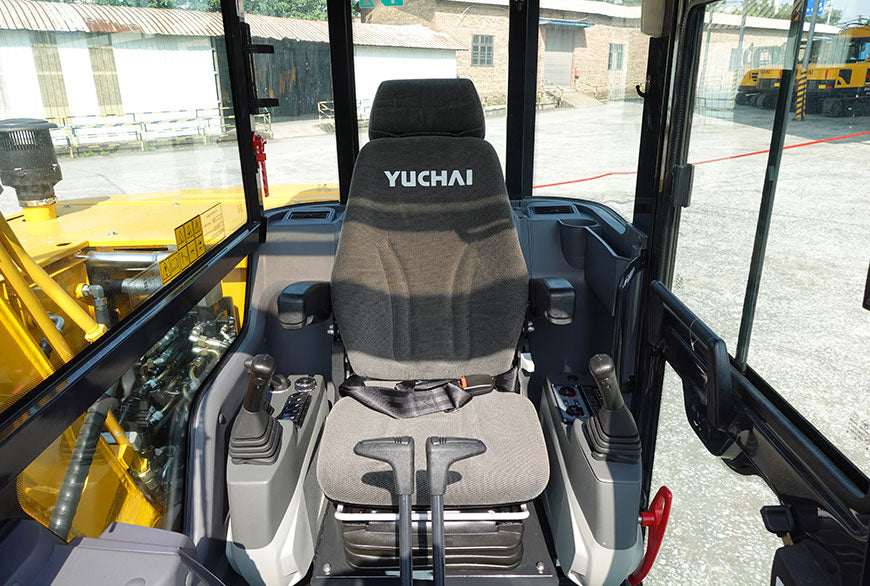

Two-way sliding seat

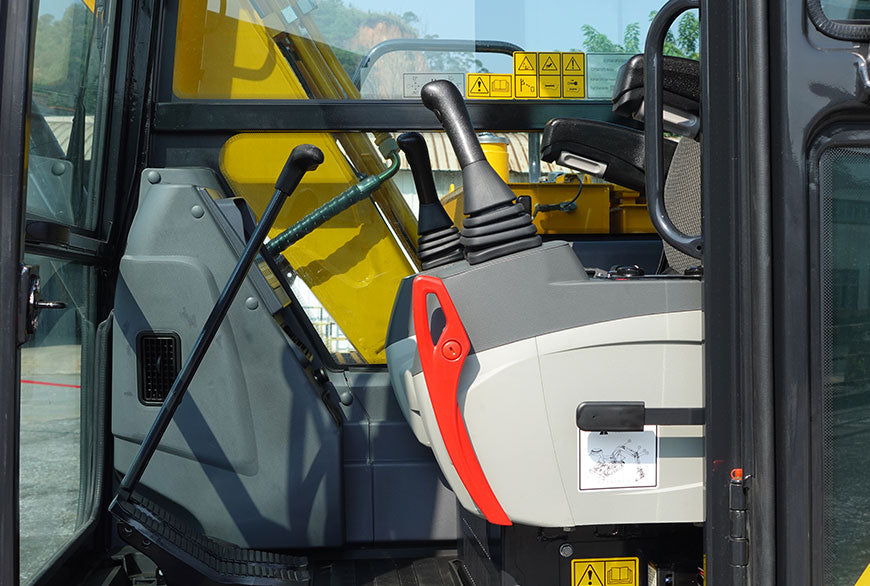

The interior is designed by professional ergonomics, the handles and switches are arranged reasonably, and the operation is natural and comfortable, which can effectively reduce fatigue.
Famous seats in the industry, with suspension damping, can adjust damping according to body weight, and can be laid down over 135.
The position of the seat and the control box can be adjusted independently, which can adapt to different figures or sitting positions
Versatile
More than 30 types of attachments, including a hydraulic hammer, bucket, quick-change device, wooden grab, simple grab pliers, ditch bucket, shell bucket, drilling tool, lawn mower, etc., are applied across more than 40 key working conditions, providing versatility in a wide range of working scenarios.

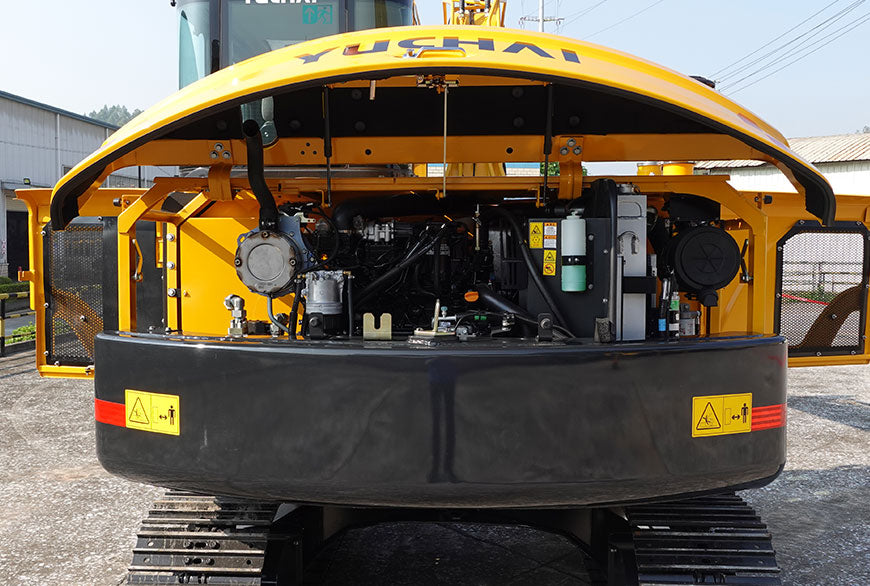

Easy maintenance
While the whole hood is kept, two openable side doors are added, and the three filters are centralized, so that all maintenance and inspection points are within reach.
All the main hydraulic hoses are arranged in the direction of the working device, which improves the convenience of detection and maintenance.
Specifications
Machine Weight - 7800 kg
Bucket Capacity - 0.26m3
Width of bucket - 845 mm
Engine Model - Yanmar 4TNV99 / 4TNV98C (EuroV)
Engine power - 44.4/2100 / 42.4/2000 kW/rpm
Max. Gradeability - 35°
Max. digging force of arm - 38 kN
Max. digging force of bucket- 56kN
Traveling speed - 3.9/2.6 km/h
Max. hauling force - 68 kN
Slewing speed of platform - 9~13 rpm
Max. digging height - 7112mm
Max. digging depth - 4022mm
Max. digging radius - 6390mm
Max. digging radius on ground level - 6248mm
Max. dumping height - 5055mm
Min. slewing radius - 1881mm
Max. vertical digging depth- 3515mm
Overall length -6215mm
Overall width - 2260mm
Overall height - 2705mm
Width of undercarriage - 2150mm
Length of track - 2783mm
Width of track - 450mm
Height between undercarriage and ground - 380 mm
Height between platform and ground - 790mm
Platform tail turning radius - 1881mm
Length to center of rollers - 2200mm
Fuel tank capacity - 151L
Hydraulic oil tank capacity -125L
Track gauge - 2200
Working Pressure - 27.5Mpa
Arm length - 1650mm
Boom length - 3710mm
Flow rate - 168+17.6L/Min
