Features
High Configuration

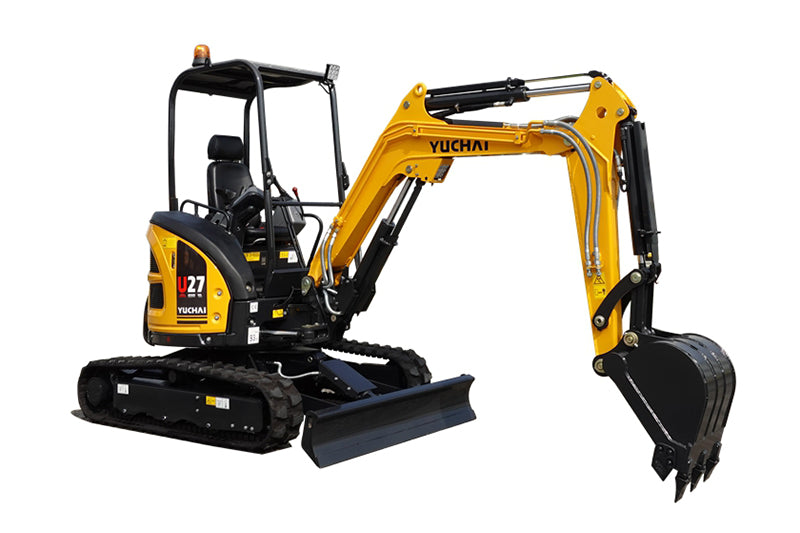

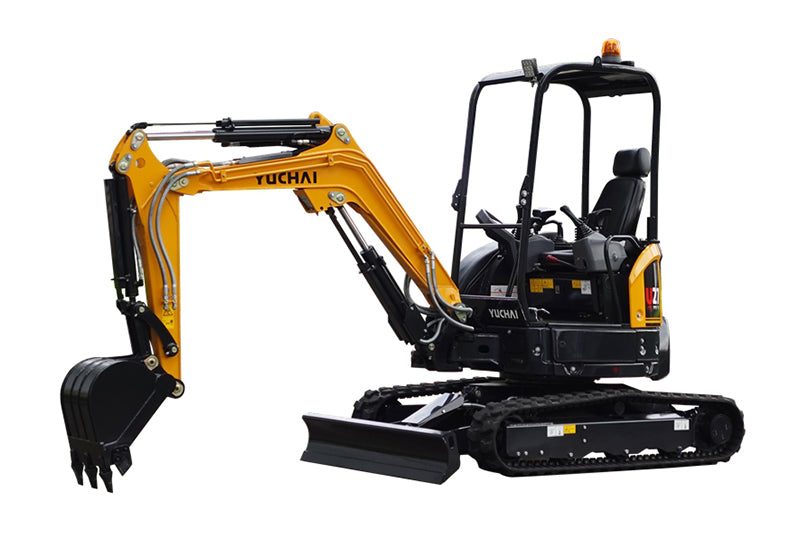

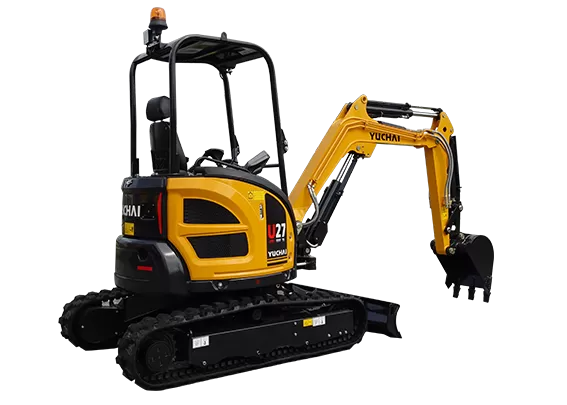

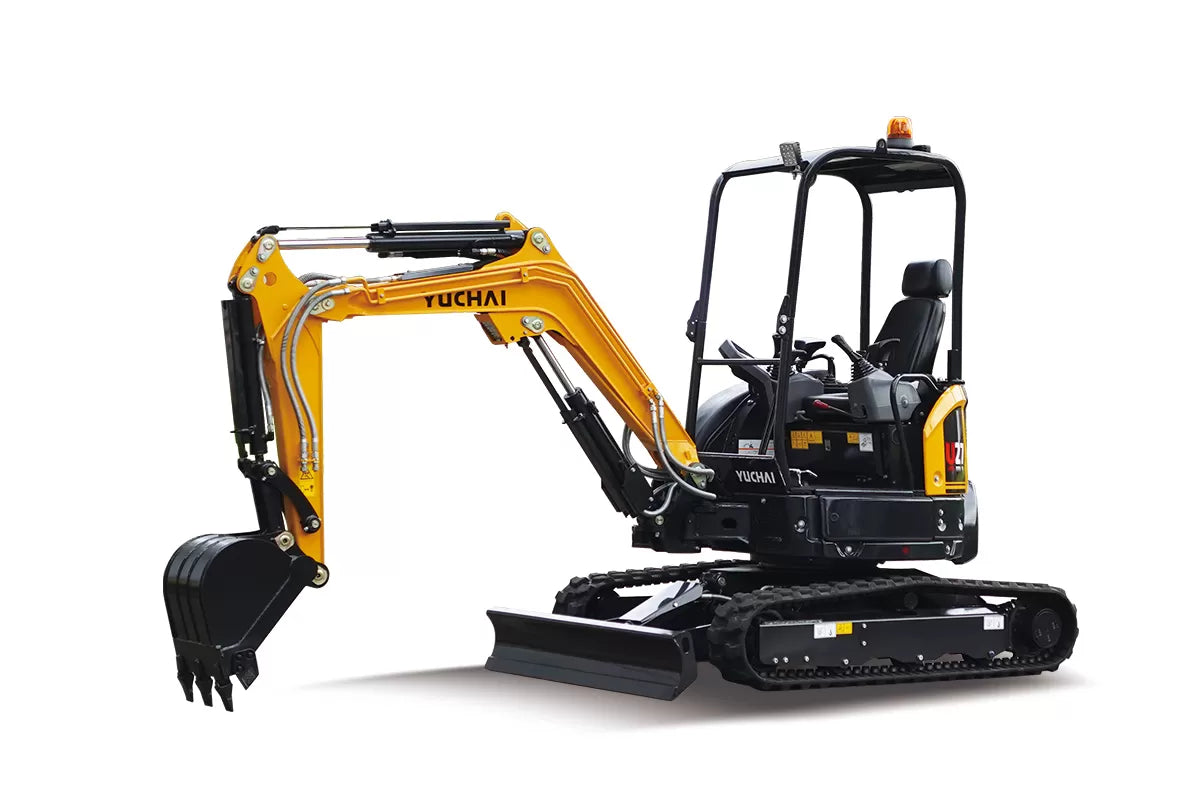

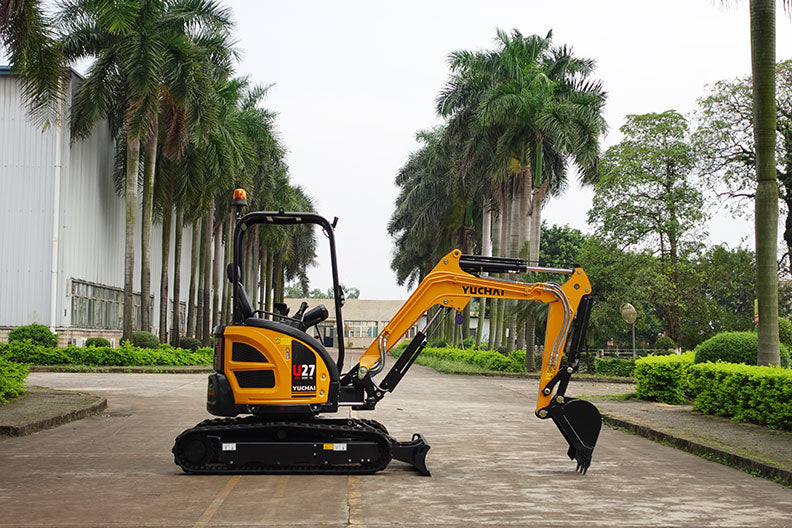

U27 is a zero tail excavator with a compact body, equipped with an international brand Yanmar engine, and a load-sensing valve.

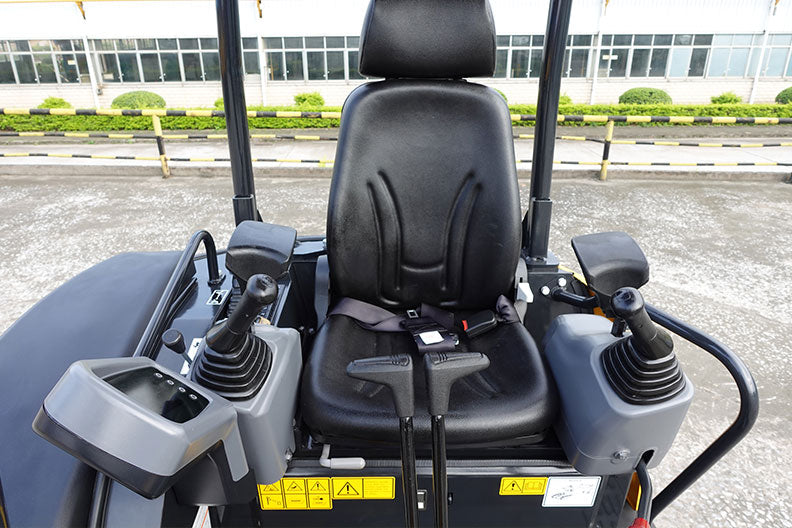

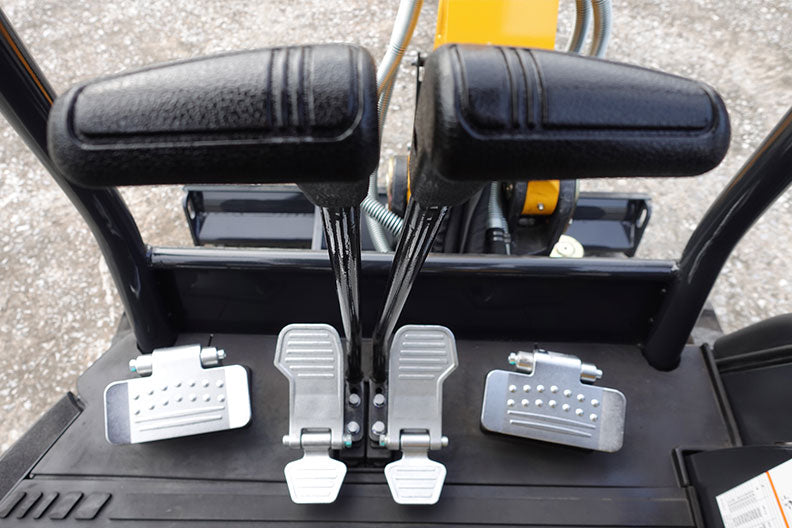

Pilot Control
With left and right pilot control operation, smooth action and better stability. Easy maintenance and low operating cost.

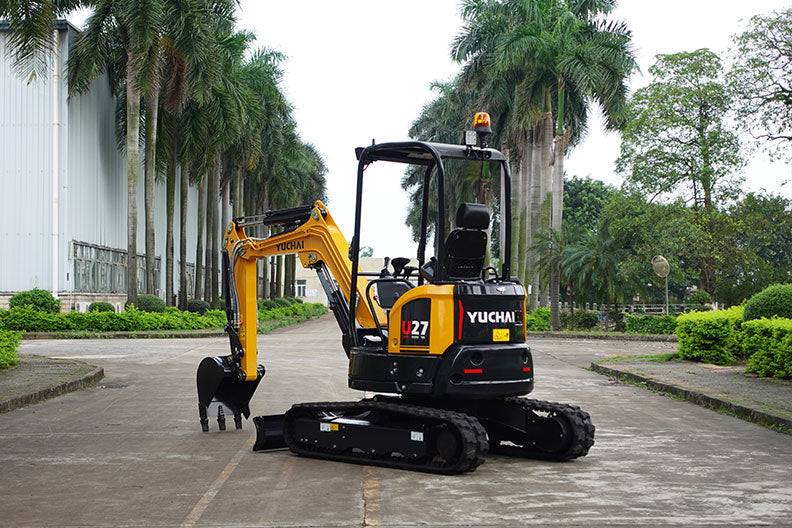

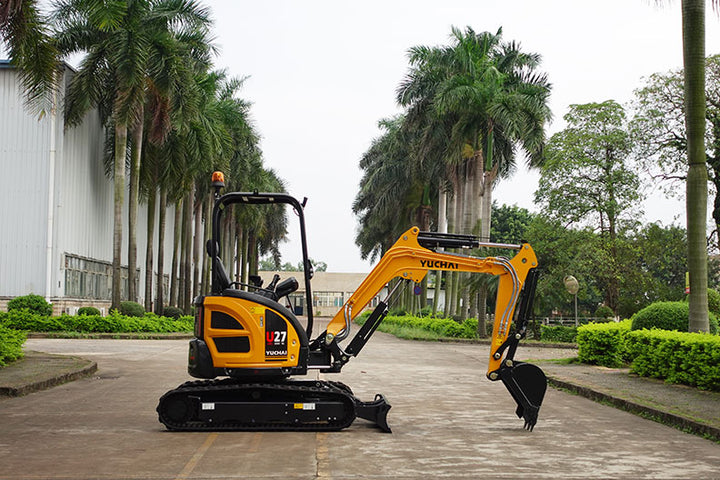

Zero Tail
The overall body does not exceed the width of both sides of the crawler, so that the excavator will not be hindered from turning when turning. Easily operate in narrow space..

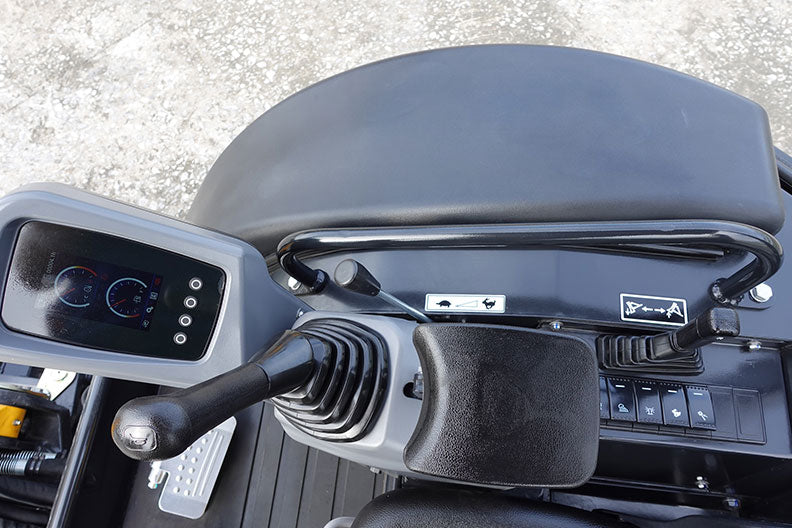

Full Pilot Control
More comfortable driving experience and smoother movement
Interchangeable
Two-column shed → four-column shed, realizing the installation and exchange of canopy and cab.

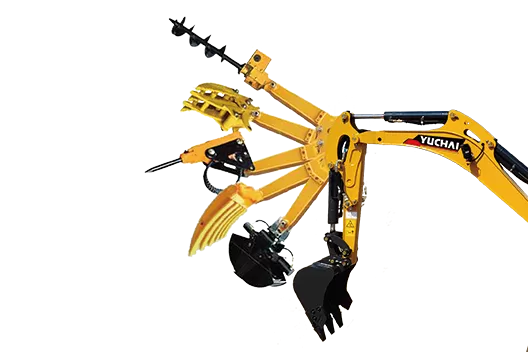

Various Attachments
More than ten types of attachments
Hydraulic hammers, buckets, quick change devices, wood grabbers, simple grab pliers clearing bucket, clamshell bucket, drilling tool, lawn mower, etc.
More than 40 key working conditions are applied, with a wide range of working conditions.

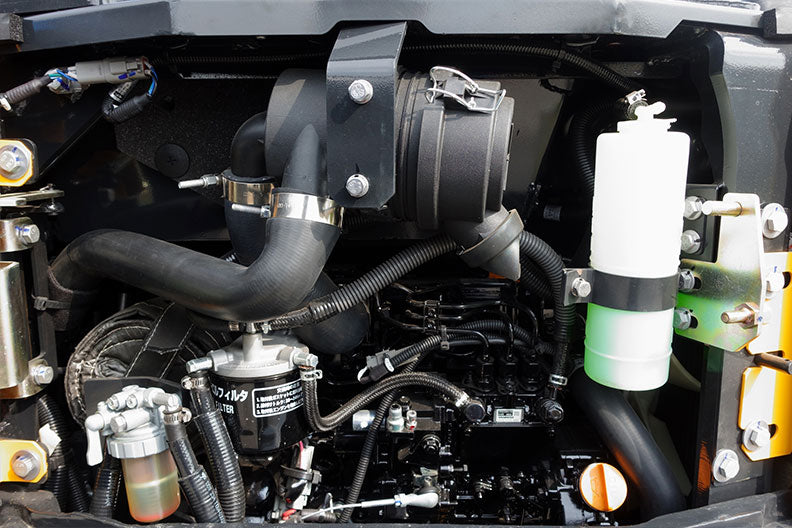

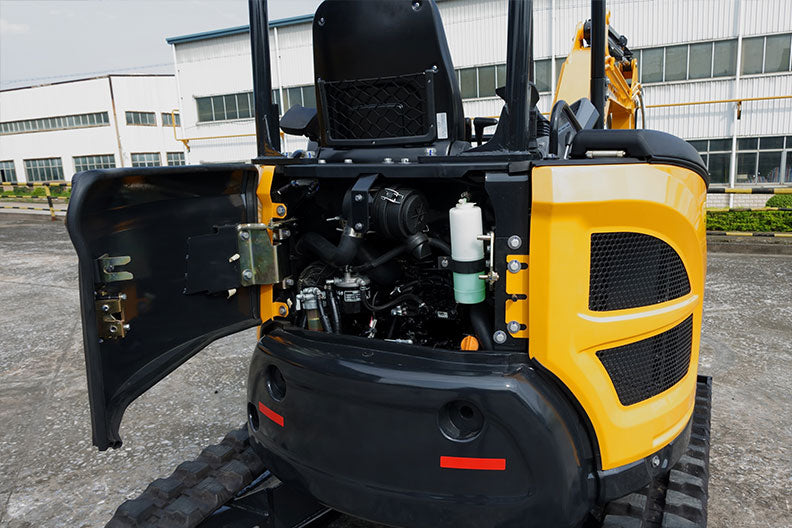

YANMAR engine
Naturally aspirated engine.
Power/speed: 14.5kW/2400rpm.
Maximum torque/speed: 62.7~68.4Nm/1800rpm.
Engine with muffler. Aluminum, oil-dispersed, water-dispersed parallel radiator.
Excellent Operation Performance
- Coordinated and smooth composite action.
- Precise control and easy operation.
- Powerful walking mechanism ensure smooth driving.
- Maintain stability without any nodding or tail-lifting phenomena.
- No impact, and no abnormal noise.
Specifications
Machine Weight - 2600 kg (Canopy) / 2740 kg (Cabin)
Bucket Capacity - 0.09m3
Bucket WIdth - 510mm
Engine Model - Yanmar 3TNV76 / 3TNV80F
Engine power - 14.5/2400 / 15.2/2500 kW/rpm
Max. Gradeability - 30°
Max. digging force of arm - 14.4 kN
Max. digging force of bucket- 23.1kN
Traveling speed - 2.3/4.2 km/h
Max. hauling force - 26 kN
Slewing speed of platform - 10~12 rpm
Max. digging height - 4170mm
Max. digging depth - 2540mm
Max. digging radius - 4520mm
Max. digging radius on ground level - 4400mm
Max. dumping height - 2780mm
Min. slewing radius - 1950mm
Max. vertical digging depth- 2240mm
Max. dozer balde height - 340mm
Max. dozer blade depth - 355mm
Overall length -4110mm
Overall width - 1500mm
Overall height - 2490mm
Width of undercarriage - 1500mm
Length of track - 2040mm
Width of track - 250mm
Height between undercarriage and ground - 320mm
Height between platform and ground - 525mm
Platform tail turning radius - 750mm
Length to center of rollers - 1590mm
Fuel tank capacity - 30L
Hydraulic oil tank capacity - 25L
Track gauge - 1590
Working Pressure - 24Mpa
Ground Contact Pressure - 30kPa

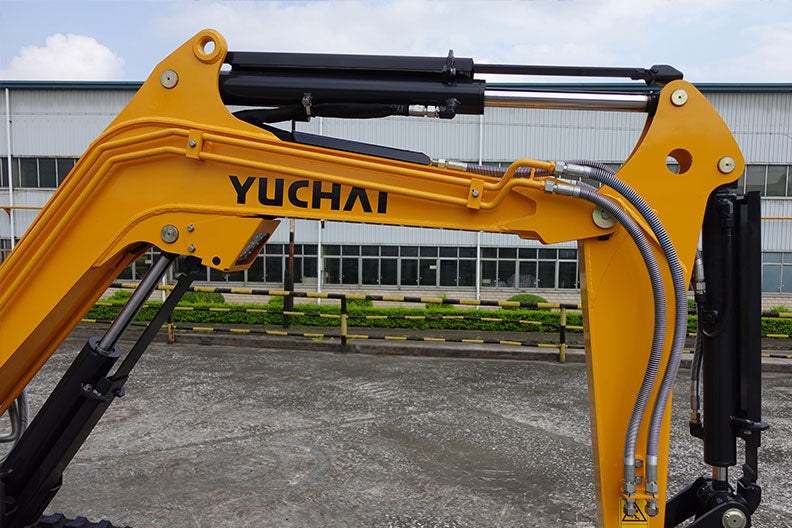

Arm length - 1150mm
Steering head angle - 47° (L) / 74° ®
Flow rate - 61.6L/Min
