Features
Adaptability
Upper arm, deflection, tailless, interchangeable track, more than 40 kinds of attachments, two columns canopy & four columns canopy & cabin interchangeable
Improved Stability

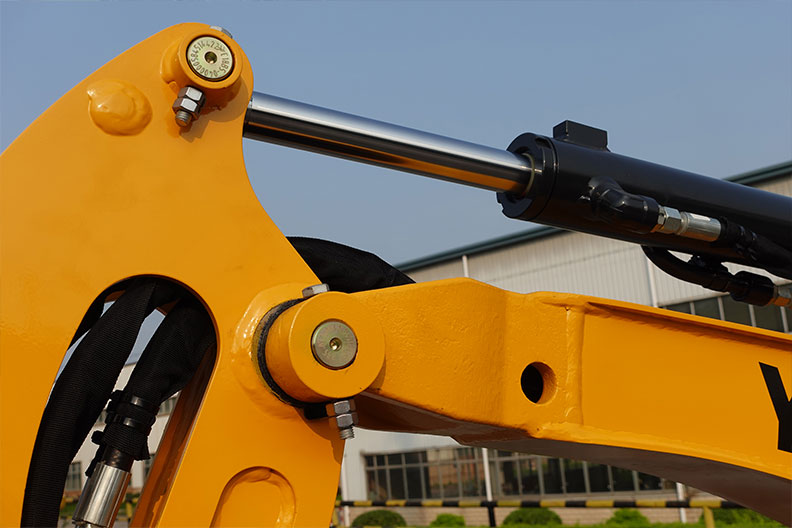

Internal pipes, cast steel end, telescopic chassis
Improved Comfort

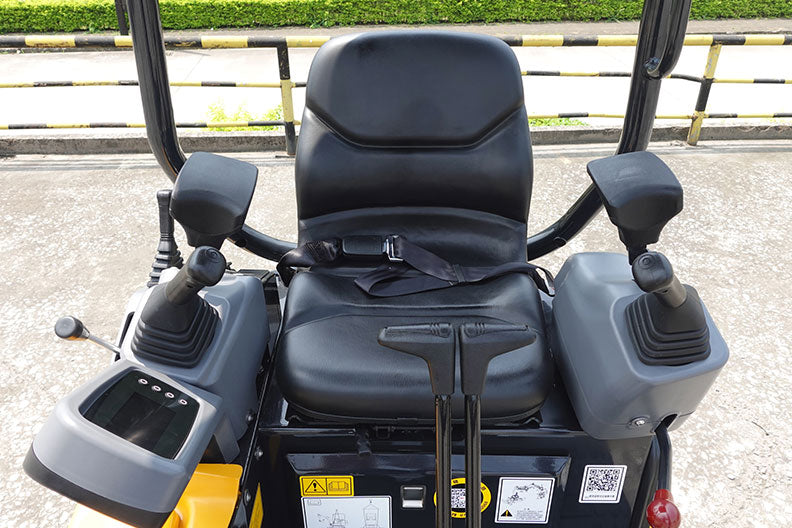

High back seat, improved control system

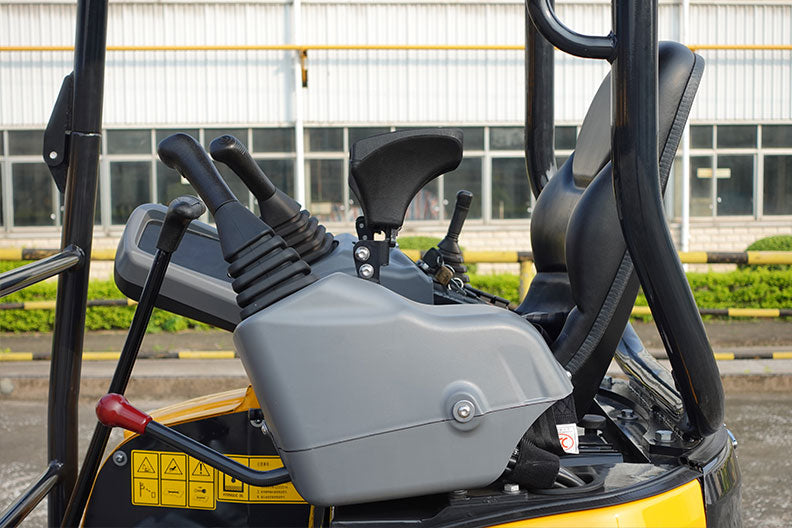

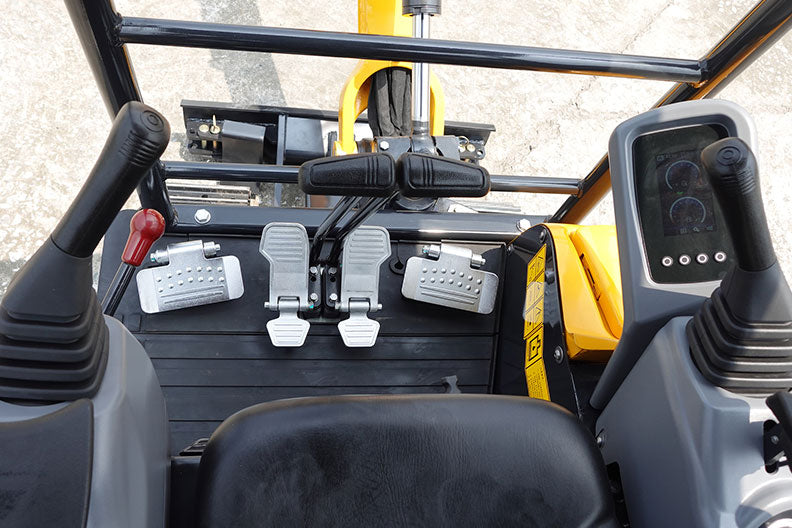

Full Pilot Control
More comfortable driving experience and smoother movement

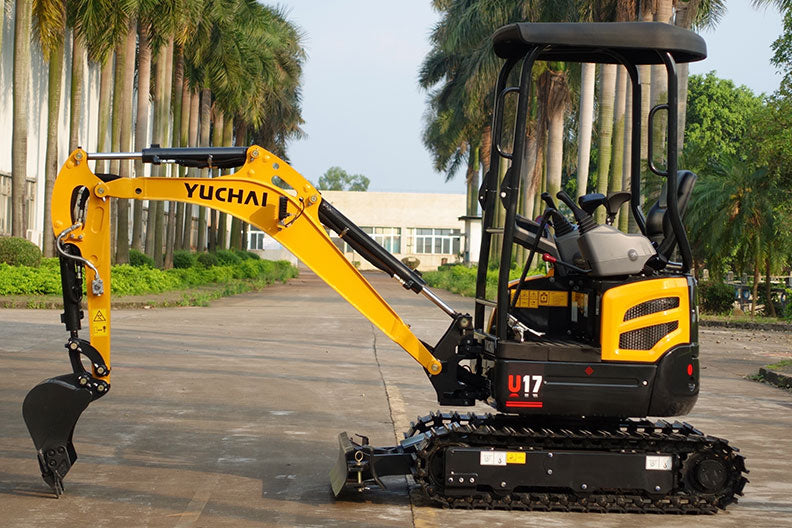

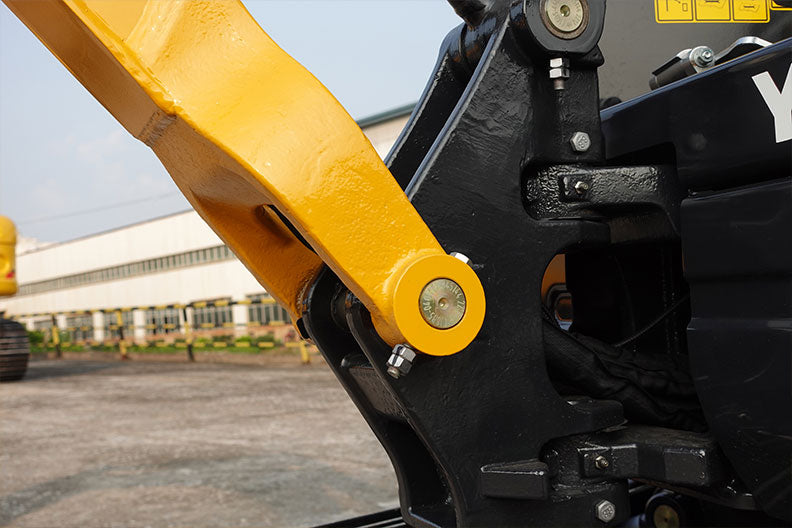

The Boom Can Be Deflected Left and Right
Maximum left deflection angle of boom is 60°.
Maximum right deflection angle of boom is 55°.
It improves the flexibility of the excavator bucket, reduces the working space, so that the bucket can rotate when the machine body and boom remain stationary.
Interchangeable

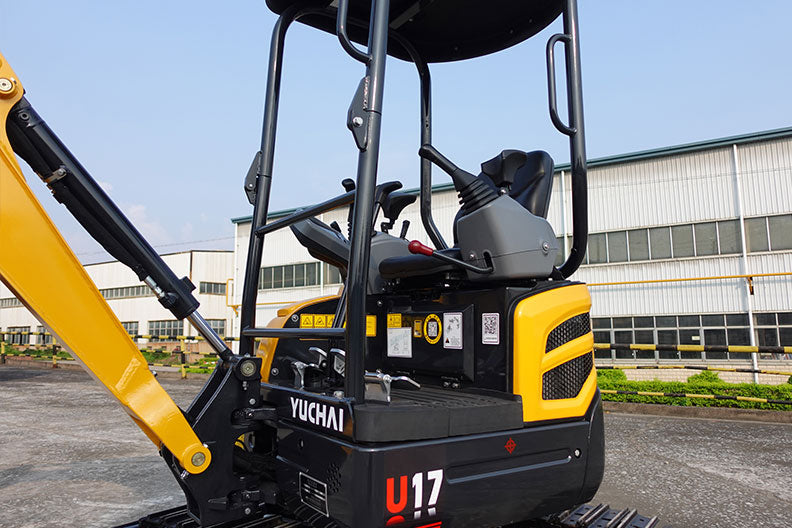

Two columns canopy → four columns cabin. The cab is interchangeable.
Various Attachments
More than ten types of attachments
Hydraulic hammers, buckets, quick change devices, wood grabbers, simple grab pliers clearing bucket, clamshell bucket, drilling tool, lawn mower, etc.
More than 40 key working conditions are applied, with a wide range of working conditions.
YANMAR engine
Power/Speed 11.8/2300 (kW/ RPM)

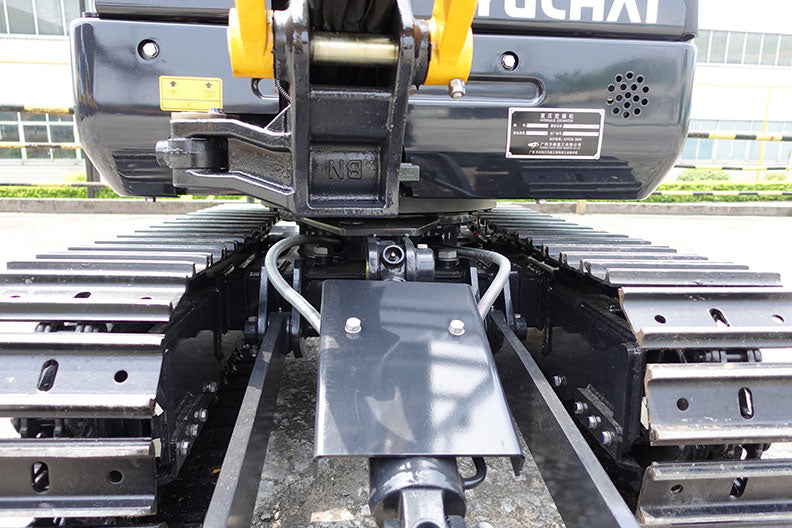

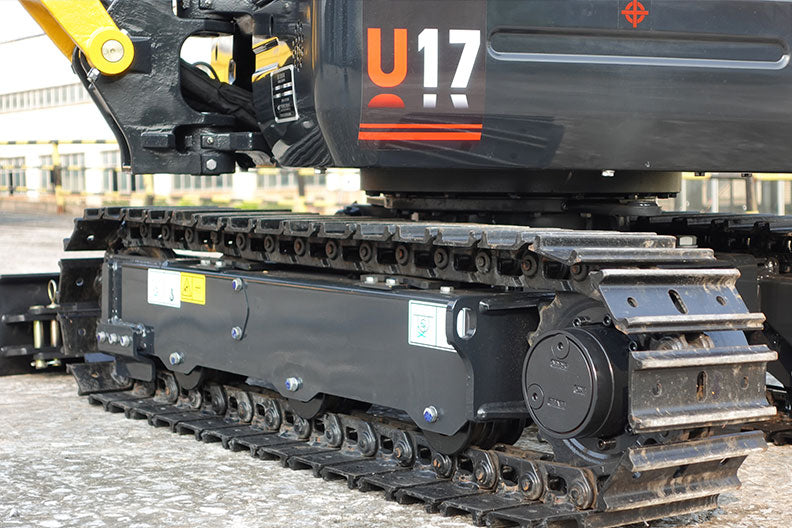

Telescopic chassis
The chassis can narrow to 990mm at the narrowest, extend to 1240mm, and can pass through narrow passages.
Load sensitive system
- The movement is light, swift, powerful, coordinated and efficient.
- The load sensitive control system has lower power consumption and higher efficiency than conventional hydraulic system.
- High efficiency and low power consumption save fuel and reduce heat of hydraulic system.
Specifications
Machine Weight - 1720kg
Bucket Capacity - 0.05m3
Bucket WIdth - 470mm

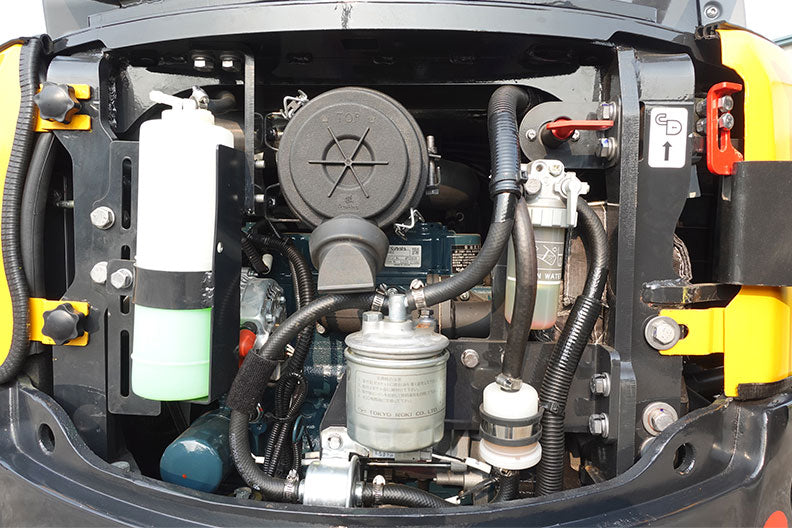

Engine Model - Kubota D902-E4B
Engine power - 11.8/2300 kW/rpm
Max. Gradeability - 30°
Max. digging force of arm - 9.5 kN
Max. digging force of bucket- 17.2kN
Traveling speed - 2.0/4.0 km/h
Max. hauling force - 25 kN
Slewing speed of platform - 8.5~10.5 rpm
Max. digging height - 3600mm
Max. digging depth - 2310mm
Max. digging radius - 3930mm
Max. digging radius on ground level - 3870mm
Max. dumping height - 2485mm
Min. slewing radius - 1500mm
Max. vertical digging depth- 1920mm
Overall length -3930mm
Overall width - 990mm
Overall height - 2340mm
Width of undercarriage - 990/1240mm
Length of track - 1600mm
Width of track - 230mm
Height between undercarriage and ground - 150mm
Height between platform and ground - 450mm
Platform tail turning radius - 620mm
Length to center of rollers - 1230mm
Fuel tank capacity - 16L
Hydraulic oil tank capacity - 16L
Track gauge - 760/1010
Working Pressure - 24Mpa
Ground Contact Pressure - 950kPa
Arm length - 1828mm
Steering head angle - 60° (L) / 55° (R)
Flow rate - 64.4L/Min
